How much does wine cellar cooling system installation cost in California?

Wine cellar cooling installation typically ranges from $3,500 to $6,500 for self-contained through-wall units, $7,000 to $14,000 for ductless split systems, and $12,000 to $22,000+ for fully concealed ducted split systems with remote exterior condensers and integrated humidification.

How long does it take to install a wine cellar cooling system?

A standard through-wall replacement takes approximately 3 to 5 hours. A new ductless or ducted split system installation requiring line set routing, electrical connections, nitrogen pressure testing, evacuation, and charging typically takes 1 to 2 days.

Why is a vapor barrier mandatory before installing cooling equipment?

A continuous 6-mil polyethylene vapor barrier or closed-cell spray foam on the warm exterior side of the cellar envelope prevents ambient moisture from migrating through drywall into the cold cellar. Without a vapor barrier, moisture will cause severe mold growth, condensation drip, and continuously overwhelm the cooling system.

What warranty coverage is included with VA Wine Cooling installations?

All new cooling installations by VA Wine Cooling include factory equipment warranties (up to 5 years on compressors) plus our comprehensive 1-year labor and workmanship warranty backed by California State License Board CSLB Lic#1055057.

WINE CELLAR COOLING SYSTEM INSTALL

Professional grade system installation tailored to your cellar size, layout, and insulation needs.

CALL NOW: 714-981-5599

⚡ Same-Day Diagnostic Available • Licensed CSLB #1055057

Get a Custom Wine Cellar Installation Quote

Protect your wine collection from damaging heat spikes and humidity loss. Fill out the quick form below or call our dispatch desk directly at (714) 981-5599.

Your Name *

Phone Number * (For Fast Confirmation)

Email Address *

Service Needed *

Cellar Specs or Problem Description (Optional)

🔒 We respect your privacy. No spam. Fast callback within 1-2 business hours.

Expert Wine Cellar Cooling Installation

We design and install reliable cooling systems tailored to your cellar's size, layout, and insulation needs. Our expert installations ensure your wine stays protected for years to come.

We only use the best cooling system brands on the market — including CellarPro, Peerless Wine Guardian, WhisperKOOL & others — ensuring maximum efficiency, quiet operation, and long-term reliability for your collection.

Residential & Commercial installations
All major brands serviced & installed
Full insulation & vapor barrier assessment
Licensed CSLB contractor — Lic#1055057

Schedule Free Consultation

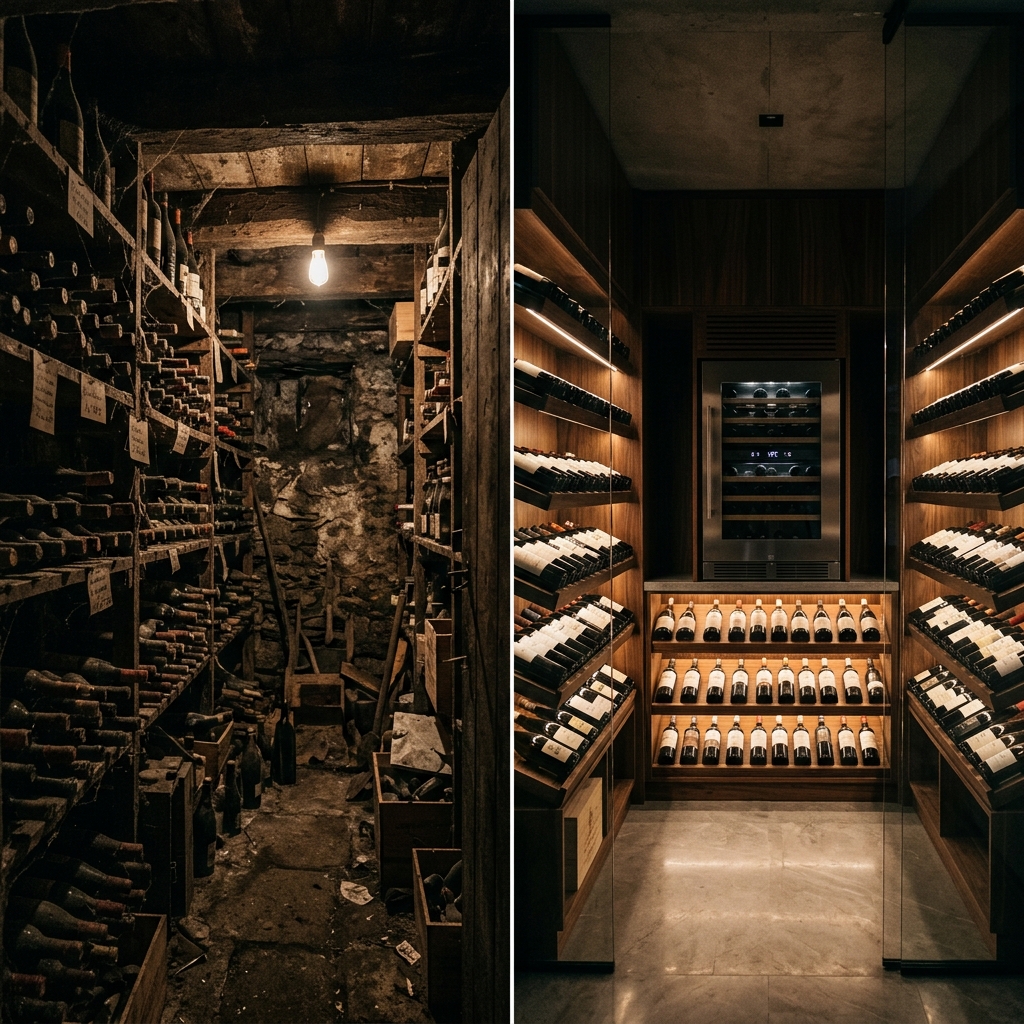

Before and after wine cellar cooling installation by VA Wine Cooling

Professional Wine Cellar Installation Standard

Professional wine cellar cooling installation requires a 5-phase engineering protocol: 1) Accurate heat-load BTU sizing calculating cubic volume, wall R-value, and glass exposure; 2) Continuous 6-mil vapor barrier inspection on the warm exterior side of all walls and ceiling; 3) Dedicated electrical circuit installation with surge suppression; 4) Refrigerant lineset brazing and deep vacuum decay testing to under 500 microns; and 5) Digital thermostat calibration set to 55°F with 60–70% relative humidity.

COOLING SYSTEM OPTIONS WE INSTALL

We will help you determine the right system for your wine cellar.

THROUGH-WALL COOLING SYSTEMS

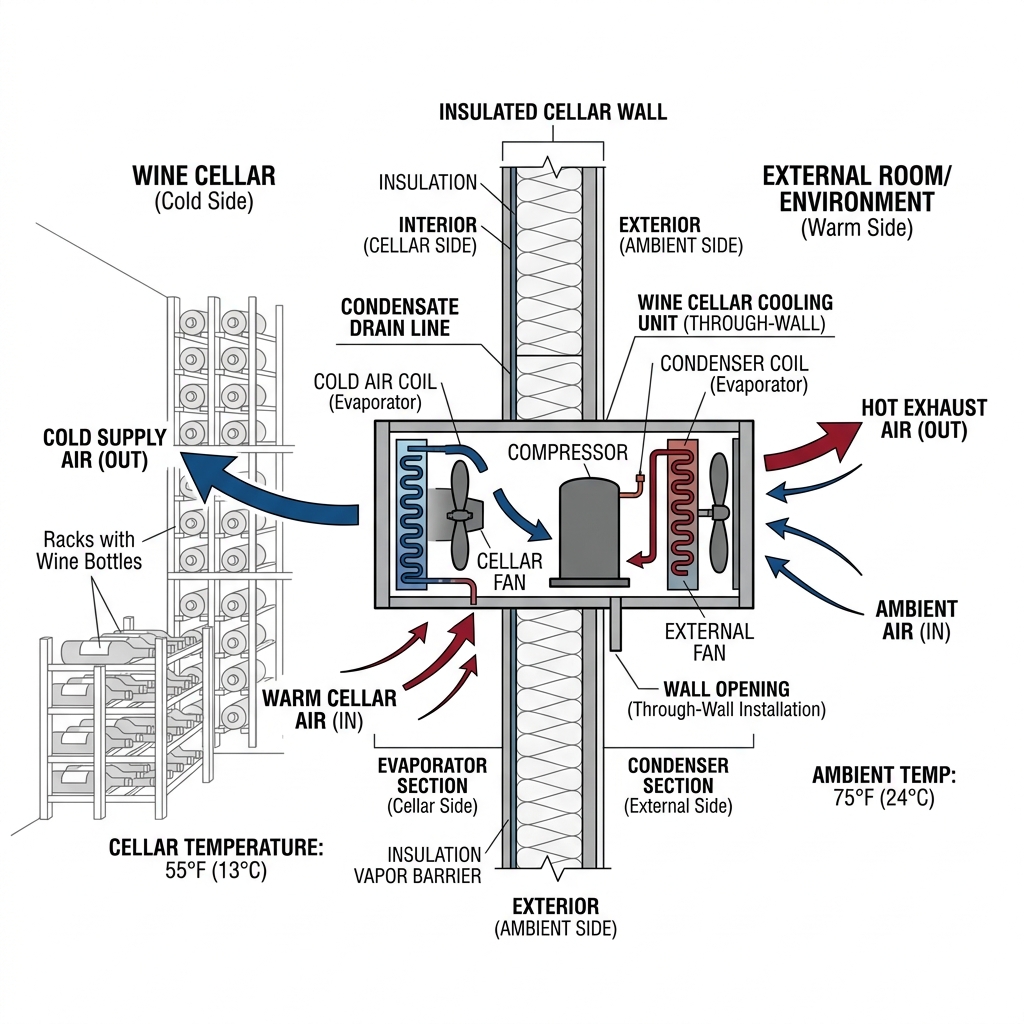

Through-wall wine cellar cooling system diagram

Best for small to medium cellars. Simple installation, budget-friendly, reliable. The unit mounts directly through the wall separating the cellar from an adjacent room.

LEARN MORE

SPLIT COOLING SYSTEMS

Also known as Ductless. Quiet operation with external condenser. Ideal for larger or noise-sensitive areas where the condensing unit can be located away from the cellar.

LEARN MORE

DUCTED COOLING SYSTEMS

Hidden installation with even airflow. Premium option for seamless cellars. Professional grade system ideal for high-end wine rooms where aesthetics are paramount.

LEARN MORE
